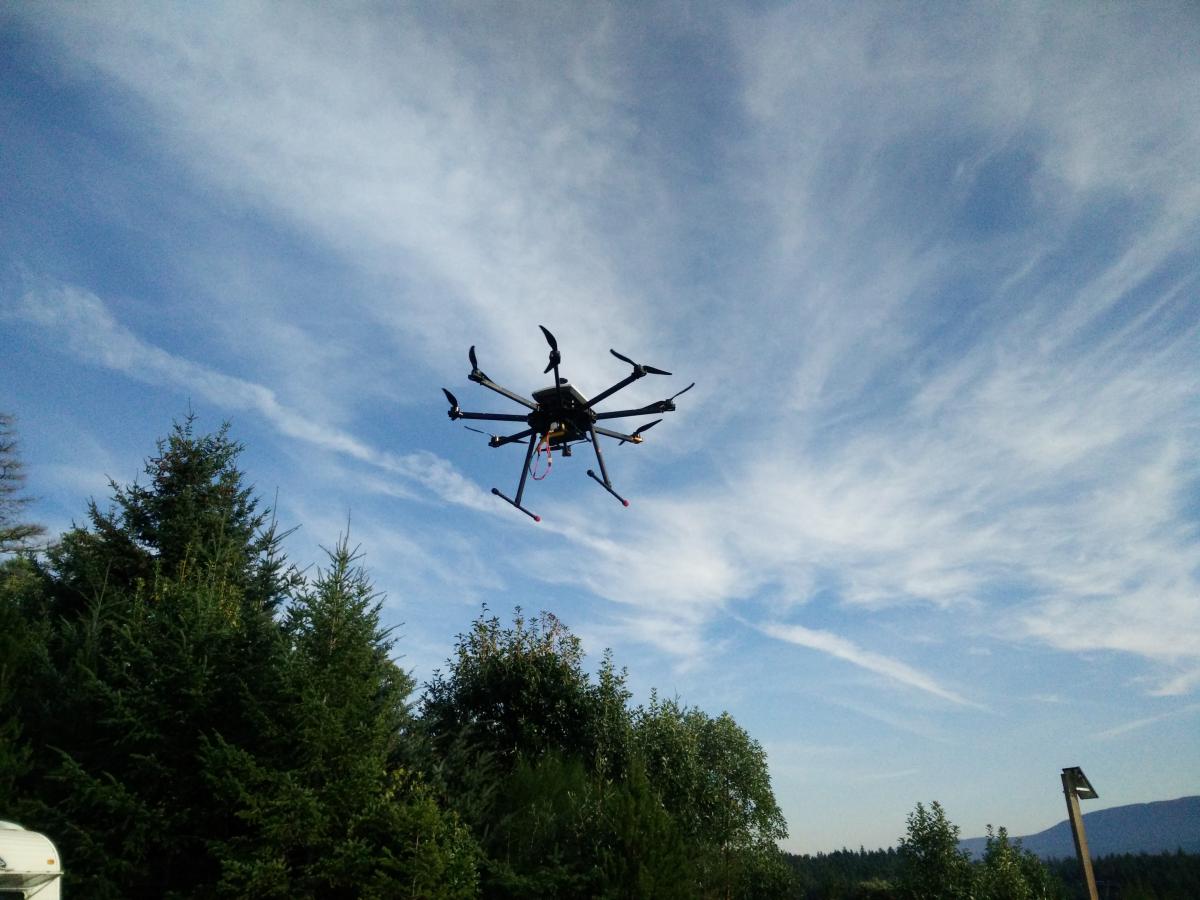

UAV Octocopter V1000 Drone

Heavy lift multirotor platform

Taking advantage of high efficiency brushless motors and carbon fiber propellers, the large octocopter platform has the capacity for a large sensor or photography payload while maintaining reliability and redundancy.

The V1000 can carry a heavy payload such as a cinema quality DSLR, scanning LIDAR, and radiation sensors. Flight times for this heavy lift platform are variable considering the loads and variety of sensors that can be mounted to its customized frame. The V1000 has the potential to tolerate a motor, propeller or ESC failure and maintain flight and safety of the payload.

Packaged in a high quality, hard shell lockable case allows for peace of mind during transport and in the field work. The V1000 is shipped ready for use out of the case. Batteries, charging docks, monitors and flight transmitters are all stowed neatly and ready to be set to work.

Customize your V1000 with sensors packages that can include air quality sensors, radiation and more. Connect via live satellite link and gather sensor data from anywhere in the world.

Call Toll Free (877) 218-6232  |  Live Chat with a representative |  Email Support

Looking to do something different with UAVs? Can’t find a current solution that works for your needs? Aretas Aerial can custom design or equip any drone size, configuration or combination of sensors. Choose from our ‘V’ series quad or hex rotor drones. We will work with you to ensure that your needs are met.

Product Features

Octocopter Specs

  • Frame: X8 Octocopter Frame
  • Motors: 4114-320kv
  • Props: 15" carbon fiber
  • ESCs: 40A ESC
  • Flight Controller: APM based flight controller
  • GPS: Ublox Neo-M8N GPS w/ Compass
  • Transmitter: FrSky Transis with X8R (8/16 ch) receiver
  • Batteries: several options available including 20,000mah batteries

Video Components

HD Video / DSLR Camera
The V1000 UAV platform can be customized to carry just about any DSLR or small body cinema grade camera such as the Blackmagic. With such a wide variety of camera solutions on the market, we can suggest some for your needs, or integrate your ideal solution right onto this octocopter platform.

Thermal Camera
The Thermal camera is an LWIR camera solution that is smaller than a dime, keeping weight on our UAVs to a minimum, and is ten times less expensive than a traditional IR camera. Using a focal plane array (FPA) of 80 × 60 active pixel the video resolution from this small package is impressive. Other thermal cameras are available to meet your specific project requirements.

  • Thermal sensitivity <50 mK
  • Multiple lens options: 50° / 25° FOV
  • Spectral range Longwave infrared, 8 μm to 14 μm

If Your looking for different specs for your thermal imaging needs, just ask, customizing payloads are our specialty.
